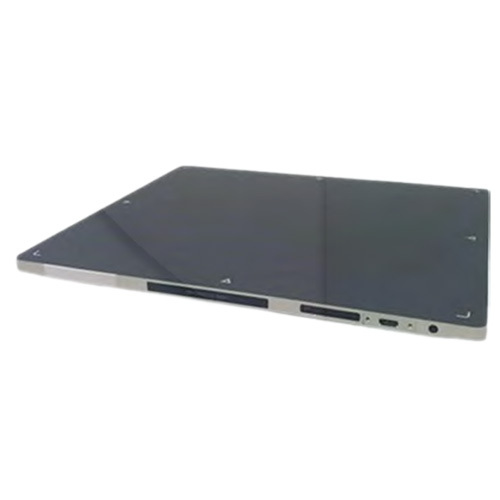

Vet DR System

Get a Price/Quote

MOQ : 1 Piece

Vet DR System Specification

Material
High-strength Aluminum Alloy Casing

Condition
New

Technology
Flat Panel Digital Radiography (DR)

Pressure Range
Atmospheric Pressure 70 kPa - 106 kPa

Operating Temperature
10C - 35C

Humidity %
10% - 90% RH (non-condensing)

Sensors Specification
Amorphous Silicon (a-Si), TFT Panel

Indicator Specification
LED Status Indicators

Speed Range
Up to 6 seconds/image acquisition

Ray Frequency Range
X-ray: 40 - 150 kVp

Exposure Time Range (in Sec)
0.001 - 10 sec

Focus
Fixed Focus (dependent on X-ray machine)

Image System
Digital Imaging, DICOM Compatible

Usage
Veterinary Digital Radiography (DR) Imaging

Power Source
Rechargeable Battery / DC Adapter

Power Consumption
15 W

Working Voltage
DC 12V

Dimension (L*W*H)
Approx. 460 mm x 426 mm x 15 mm

Weight
Approx. 3.6 kg

Communication Interface
Gigabit Ethernet / Wi-Fi (optional)

Image Preview Time
3 secs

System Compatibility
Windows-based Imaging Software

Pixel Pitch
140 m

A/D Conversion
16 bit

Waterproof Rating
IPX4 (Resistant to fluid ingress)

Active Area
430 mm x 430 mm

Battery Backup Time
Up to 4 hours continuous operation

Pixel Matrix
3072 x 3072

About Vet DR System

Shop Now for the gilt-edged VetBiz DR 1717-1417 Vet DR System, an exclusive, top-ranking solution for veterinary digital radiography. Capitalise on its top-drawer performance, featuring a pixel matrix of 3072 x 3072, 16-bit A/D conversion, and expansive 430 x 430 mm active area. With robust IPX4 waterproofing and a lightweight, high-strength aluminum alloy design, this portable flat panel detector ensures reliable imaging in any environment. Enjoy rapid image preview (3 seconds), extensive system compatibility, and uninterrupted use for up to 4 hours with battery backup. Secure this state-of-the-art device today for leading-edge veterinary diagnostics!

Broader Applications for Veterinary Needs

The VetBiz DR 1717-1417 Vet DR System showcases remarkable adaptability, making it ideal not only for general veterinary clinics but also for specialized animal care facilities and research labs. Its robust construction suits varied application surfaces, including mobile and stationary setups. Though designed for veterinary digital radiography, its applicability extends to agricultural plant research in controlled environments, providing detailed imaging for both animals and botanical studies where digital documentation is needed.

Comprehensive Market Reach & Secure Packaging

Valuation of the VetBiz DR 1717-1417 Vet DR System is strengthened by its wide acceptance in India's main domestic market and growing recognition in international export markets. The offer includes secure, cushioned packaging, ensuring the product's safe transportation worldwide. Reliable logistics partners streamline delivery to both urban and rural areas, supporting global clients. This system's market presence and competitive edge make it an attractive option for clinics and institutions alike.

FAQ's of VetBiz DR 1717-1417 Vet DR System:

Q: How does the VetBiz DR 1717-1417 ensure image quality?

A: This system employs a high-resolution pixel matrix (3072 x 3072), 16-bit A/D conversion, and amorphous silicon sensors to deliver top-tier, clear images for precise veterinary diagnostics.

Q: What are the main usage benefits of this DR system?

A: The VetBiz DR 1717-1417 offers rapid image acquisition (as quick as 6 seconds), portable design, water resistance, and compatibility with Windows-based imaging software, making it highly efficient and reliable in varied clinical settings.

Q: Where can the VetBiz DR 1717-1417 be used?

A: It is suitable for veterinary clinics, research centers, mobile animal care units, and even plant science applications due to its versatile flat panel and robust casing.

Q: When is the optimal scenario to use the Vet DR System?

A: Optimal use is during routine diagnostic imaging, emergency veterinary care, field visits, or research projects requiring high-quality digital radiography images swiftly and accurately.

Q: What is the process for installing the VetBiz DR 1717-1417?

A: Installation is straightforward, involving connection to compatible Windows-based imaging software and optionally configuring wireless networking, allowing swift startup and integration into existing workflows.

Q: How can clients benefit from the waterproof and portable features?

A: The IPX4 waterproof rating protects against fluid exposure, while the lightweight 3.6 kg design and built-in battery allow for easy transportation and use in diverse, sometimes remote, environments.
