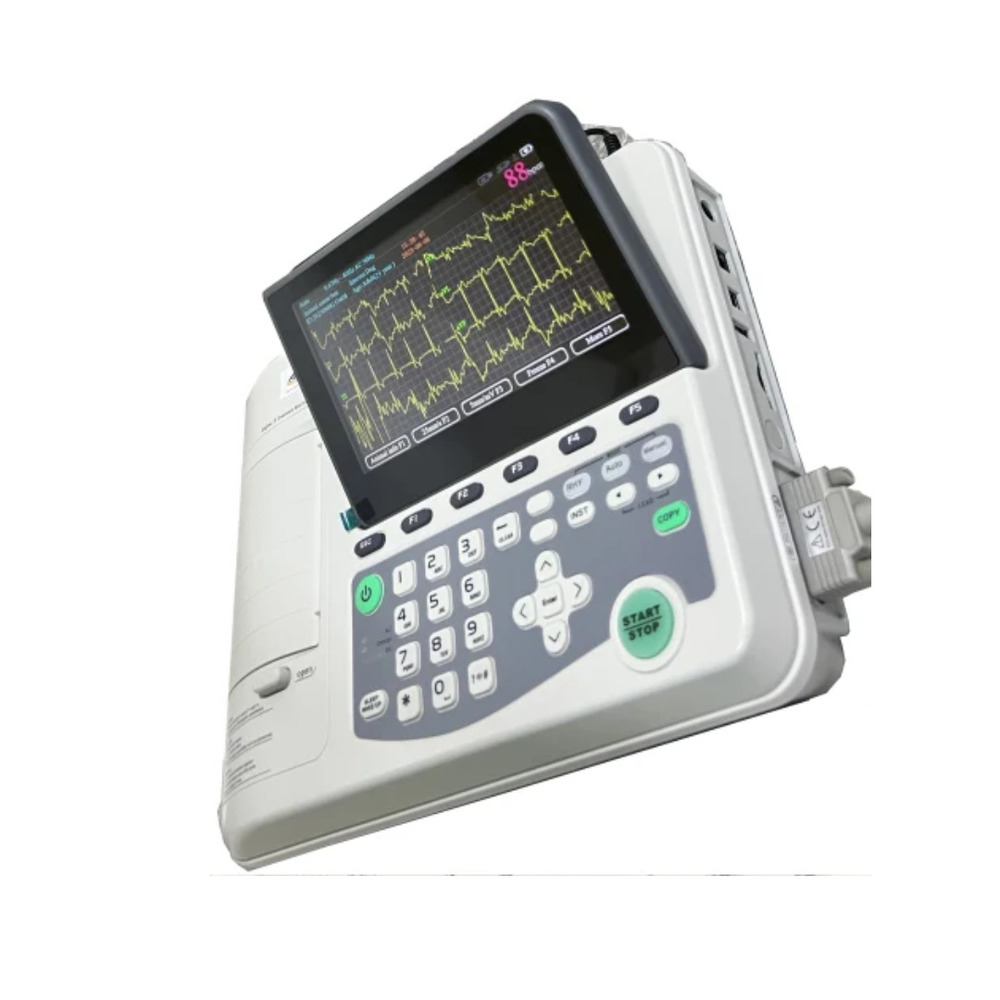

VetBiz TMNG-3ACV ECG Machine

Get a Price/Quote

MOQ : 1 Piece

VetBiz TMNG-3ACV ECG Machine Specification

Material
High-grade Plastic

Application
Veterinary use (Dogs, Cats, Large Animals)

Suitable For
Veterinary Clinics, Hospitals

Accuracy
1%

Height
70 mm

Frequency
50/60 Hz

Automation Grade
Automatic

Color Code
White & Blue

Treatment Type
ECG Monitoring & Diagnosis

Storage Capacity
Up to 100 ECG records

Temperature Range
5C - 40C

Dimension (L*W*H)
280 x 220 x 70 mm

Function
3/6 channel ECG recording, automatic interpretation

Shape
Rectangular

Phase
Single Phase

Properties
Multi-channel, portable, high accuracy

Display Type
Digital LCD

Power
60 VA

Humidity Range
95% (non-condensing)

Use
Recording and monitoring animal ECG

Product Type
Vet ECG Machine

Weight
1.5 kg

Voltage
110-240 V AC

Power Source
AC Power / Rechargeable Battery

Display
5.7 LCD

Built-in Software
ECG Analysis

Baseline Drift Filter
Yes

Alarm System
Audio-Visual Alerts

Memory Export
SD Card Support

Operation Modes
Manual/Auto/Arrhythmia

Printing Method
Thermal Printer

Safety Standard
IEC 60601-1 Certified

Battery Backup
2 hours

Accessories Supplied
Patient Electrodes, Power Cord, Battery, User Manual

Language Support
Multi-language selectable

Data Transfer
USB Interface

Lead System
3/6 Channel

Input Impedance
>50 M

Paper Size
80 mm (width)

Common Mode Rejection Ratio
>100 dB

VetBiz TMNG-3ACV ECG Machine Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
10 Pieces Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

About VetBiz TMNG-3ACV ECG Machine

Add to Cart the VetBiz TMNG-3ACV ECG Machine, the latest pivotal innovation for veterinary clinics, hospitals, and service providers. This top-ranking, multi-channel, portable device enables resplendent accuracy in monitoring and recording animal ECGs. With a 3/6 channel lead system, 2-hour battery backup, and user-friendly digital LCD, it's suitable for both dogs and large animals. Trending features include USB and SD card support, thermal printer output (80 mm), multi-language interface, and robust audio-visual alarm. IEC 60601-1 certification, automatic interpretation, and reliable data transfer position this as a must-have in veterinary care.

Advantages & Features of the VetBiz TMNG-3ACV ECG Machine

Perfectly suited for veterinary clinics and hospitals, the VetBiz TMNG-3ACV ECG Machine offers portable functionality, high accuracy, and a resplendent digital LCD display. Key competitive advantages include multi-channel ECG recording (3/6 channels), robust data transfer options (USB, SD card), and automatic interpretation for rapid diagnosis. This device provides audio-visual alarms, multi-language support, and extensive memory to store up to 100 ECG records, making it a top-ranking solution for comprehensive animal care.

Delivery, Export Markets, and Shipping Information

Delivery of the VetBiz TMNG-3ACV ECG Machine is streamlined following the purchase order, ensuring prompt dispatch to your clinic or hospital. With secure shipping, we supply to major export markets worldwide, including Asia, Africa, and the Middle East. The FOB port is located in India, providing reliability and ease for international clients. Purchase with confidence, knowing that every step from order to delivery is designed for security and efficiency.

FAQ's of VetBiz TMNG-3ACV ECG Machine:

Q: How does the VetBiz TMNG-3ACV ECG Machine support veterinary ECG monitoring?

A: The VetBiz TMNG-3ACV ECG Machine offers high-accuracy, multi-channel (3/6) ECG recording, automatic interpretation, and ECG analysis software, ensuring precise monitoring and diagnosis for dogs, cats, and large animals.

Q: What accessories are included with the VetBiz TMNG-3ACV ECG Machine?

A: Each unit comes with patient electrodes, a power cord, rechargeable battery, and a comprehensive user manual to facilitate immediate and efficient use.

Q: Where can the VetBiz TMNG-3ACV ECG Machine be used?

A: This device is suitable for veterinary clinics, hospitals, and animal healthcare settings, providing portability and advanced ECG analysis for a variety of animals.

Q: What are the benefits of its data transfer and storage capabilities?

A: The machine supports USB data transfer and SD card export, enabling easy storage and management of up to 100 ECG records, which streamlines patient history tracking and review.

Q: How secure and efficient is the delivery process for this ECG machine?

A: Upon receipt of a purchase order, delivery is arranged through secure shipping channels, ensuring the device arrives safely and promptly at your preferred location.

Q: When should I consider using the Tmng-3acv for my veterinary practice?

A: Consider this model when you require a robust, automated, and multi-channel ECG device that complies with international safety standards and offers multi-language support for diverse clinical teams.
